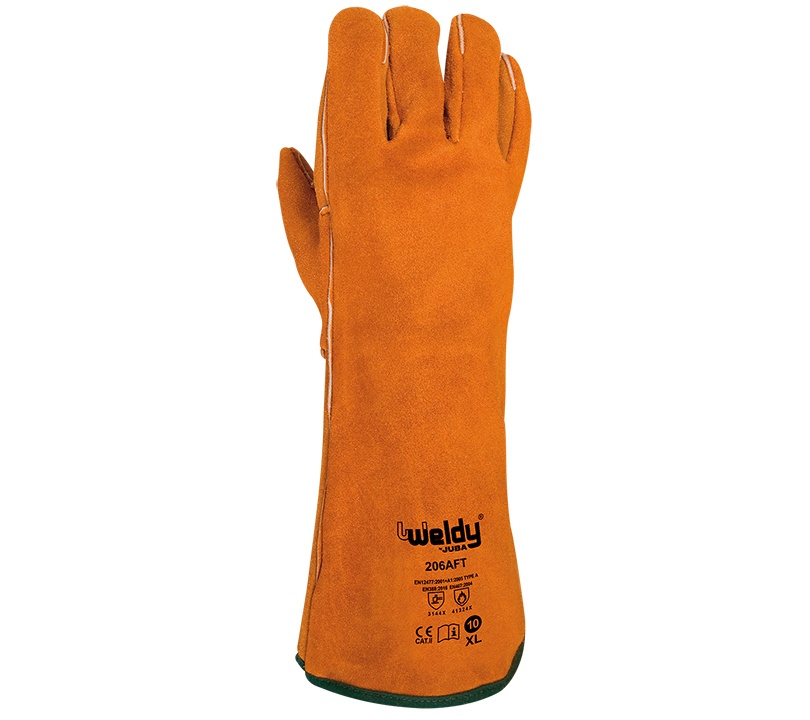

Guante Juba - 206AFT JUBA

206AFT JUBA

Guante de serraje crupón extra para soldadores, flor vacuno en palma.

Normativa

41324X

A - Flame behaviour
The material should comply with the requirements in the table. In addition, the material should not drip or melt. The seams should not open up after 15 seconds ignition time.

SERVICE PROVISION LEVEL	POST-INFLAMMATION TIME	POST-INCANDESCENCE TIME
1	≤ 20	No requirement
2	≤ 10	≤ 120
3	≤ 3	≤ 25
4	≤ 2	≤ 5

B - Heat per contact:

The material should comply with:

SERVICE PROVISION LEVEL	CONTACT TEMPERATURE(	THRESHOLD TIME (s)
1	100	≥ 15
2	250	≥ 15
3	350	≥ 15
4	500	≥ 15

C - Convective heat
The material should comply with:

SERVICE PROVISION LEVEL	HTI HEAT TRANSFER INDEX
1	≥ 4
2	≥ 7
3	≥ 10
4	≥ 18

D - Radiating heat
The material should comply with:

SERVICE PROVISION LEVEL	HEAT TRANSFER INDEX T₃
1	≥ 7
2	≥ 20
3	≥ 50
4	≥ 95

E - Small splashes
The number of droplets necessary to produce a 40ºC rise in temperature should meet requirements in the table:

SERVICE PROVISION LEVEL	NUMBER OF DROPLETS
1	≥ 10
2	≥ 15
3	≥ 25
4	≥ 35

F - Large splashes
The PVC film that simulates the skin will not be smoothed or its surface roughness changed in any other way, with any of the quantities of iron used:

SERVICE PROVISION LEVEL	MOLTEN IRON (g)
1	30
2	60
3	120
4	200

Welder

Requirements and test methods for welder's gloves. It classifies them into two types:

Type A general welder gloves.
Type B tact welder gloves. High desterity TIG welding case.

Warnings

At the moment there is no test method to determine the penetration of UV radiation through the materials from which the glove is made.
When gloves are intended for arc welding: These gloves do not provide protection against electric shock caused by faulty equipment or live work, and electrical resistance is reduced if the gloves are damp, dirty, or sweat-wet, which could increase the risk.

PROPERTY	MINIMUM REQUIREMENTS
PROPERTY	STANDARD NUMBER EN	TYPE A	TYPE B
Abrasion resistance	EN 388	2 (500 cycles)	1 (100 cycles)
Blade cut resistance	EN 388	1 (index 1,2)	1 (index 1,2)
Tear resistance	EN 388	2 (25 N)	1 (10 N)
Puncture resistance	EN 388	2 (60 N)	1 (20 N)
Fire behavior	EN 407	3	2
Contact heat resistance	EN 407	1 (contact temperature 100ºC)	1 (contact temperature 100ºC)
Convective heat resistance	EN 407	2 (HTI ≥ 7)	-
Resistance to small molten metal splashes	EN 407	3 (25 drops)	2 (15 drops)
Desterity	prEN420:1998	1 (diameter less than 11 mm)	4 (diameter less than 6,5 mm)

	MINIMUM GLOVE LENGTH
SIZE	6	7	8	9	10	11
LENGTH	300mm	310mm	320mm	330mm	340mm	350mm

3144X

EN388:2016 Protective gloves against mechanical risks.
The EN388: 2003 standard is renamed EN388: 2016, the year of its revision. The reason for the modification is given by the discrepancies in the results between laboratories in the knife cut test, COUP TEST. Materials with high levels of cut produce a dulling effect on the circular blades, which undermines the result.

The new regulation was published in November 2016 and the previous one is from the year 2003. During these 13 years, there has been a great innovation in the materials for the manufacture of cutting gloves, they have forced to introduce changes in the tests to be able to measure with more rigorous levels of protection. If you want to know more about the main changes in these regulations, you can consult it through our website www.jubappe.es

pictograma 388 pictograma 388A1

A - Abrasion resistance (X, 0, 1, 2, 3, 4)
B - Blade Cut Resistance (X, 0, 1, 2, 3, 4, 5)
C - Tear resistance (X, 0, 1, 2, 3, 4)
D - Puncture resistance (X, 0, 1, 2, 3, 4)
E - Cutting by sharp objects ISO 13997 (A, B, C, D, E, F)
F - Impact test complies / does not comply (It is optional. If it complies, put P)

EN388:2016 PERFORMANCE LEVELS	1	2	3	4	5
6.1 Abrasion resistance (Cycles)	100	500	2000	8000	-
6.2 Blade cut resistance (Index)	1,2	2,5	5	10	20
6.4 Tear resistance (Newtons)	10	25	50	75	-
6.5 Puncture resistance (Newtons)	20	60	100	150	-

ENISO13997:1999 PERFORMANCE LEVELS	A	B	C	D	E	F
6.3 TDM: Cut resistance (Newtons)	2	5	10	15	22	30

Especiales

Materiales

Piel

Color

Amarillo / Naranja

Grueso

1.40 mm

Largo

XL - 38 cm

Tallas

10/XL

Embalaje

10 pares/paquete

50 pares/caja

Características

Piel de calidad extra.

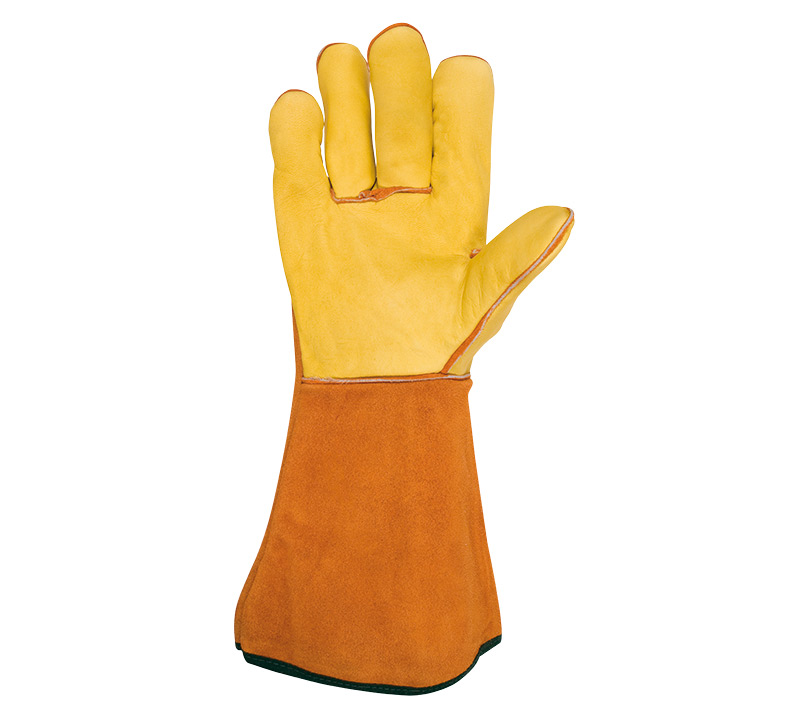

Ofrece mayor tacto por su palma en piel flor.
Muy confortable gracias a su forro interior de algodón en palma y dorso.
Manguito con forro interior de poliéster/algodón canvas.
Resistente al calor por contacto (100ºC durante 15 segundos).
Excelente comportamiento a la llama y a pequeñas salpicaduras.
Cosido con hilo de Kevlar® para mayor durabilidad.
Cumple con la norma EN12477:2001+A1:2005 de guantes de protección para soldadores de tipo A.

Guantes de trabajo recomendados para:

Trabajos de soldadura agresiva.
Astilleros navales.
Industria aeronáutica.
Corte por plasma.

Documentación

article Ficha técnica article Declaración de conformidad

Consulta a un técnico

Le podemos asesorar cuál es el guante más adecuado para su puesto de trabajo

Consulta a un técnico

Guante Juba - 206AFT JUBA

Guante de serraje crupón extra para soldadores, flor vacuno en palma.

Normativa

Especiales

Materiales

Color

Grueso

Características

Piel de calidad extra.

Ofrece mayor tacto por su palma en piel flor.

Muy confortable gracias a su forro interior de algodón en palma y dorso.

Manguito con forro interior de poliéster/algodón canvas.

Resistente al calor por contacto (100ºC durante 15 segundos).

Excelente comportamiento a la llama y a pequeñas salpicaduras.

Cosido con hilo de Kevlar® para mayor durabilidad.

Cumple con la norma EN12477:2001+A1:2005 de guantes de protección para soldadores de tipo A.

Guantes de trabajo recomendados para:

Trabajos de soldadura agresiva.

Astilleros navales.

Industria aeronáutica.

Corte por plasma.

Documentación

Consulta a un técnico
